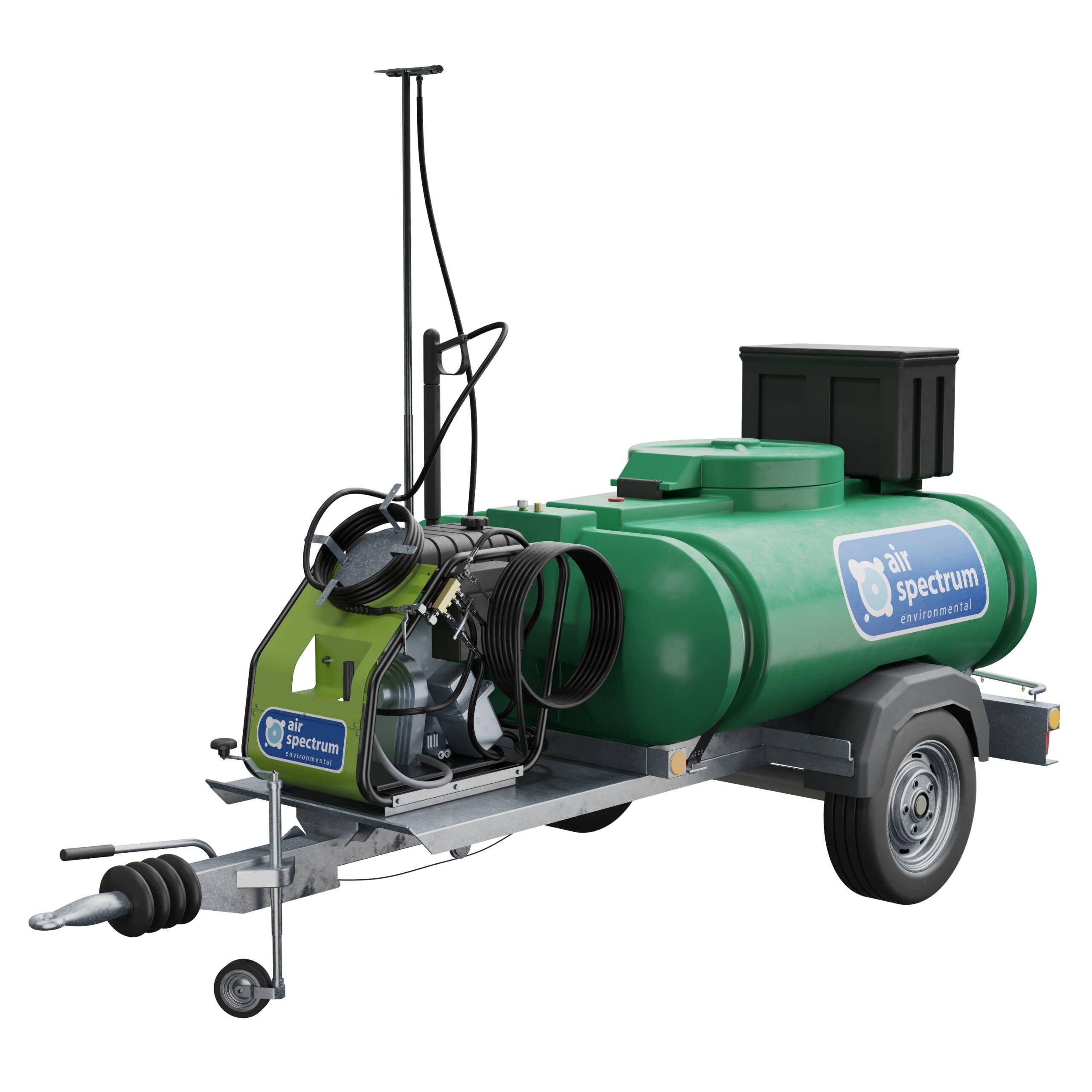

Quattro combines multiple pieces of suppression equipment to provide a 4-in-1 effective defence against dust and odour. Quattro can also be used for industrial cleaning or disinfection purposes.
Measuring 1.6m in diameter, the rear spray bar uses 10 powerful jet nozzles to produce a dampening mist, ideal for roads and heavy-traffic areas.
This attachment allows for the integration of our Pacific system. A detachable 10m manifold and T-section runs up to 100m of 2m spaced, flexible nozzle-line. This is ideal for boundry and entryway suppression.
Using a fully flexible handheld lance, the Jet Wash attachment allows for direct application to problem areas
Extending to a height of 3m, the rainmaker houses three powerful jet nozzles, capable of throwing mist up to 20m
| Droplet size (μm) | 50-100 microns |
| Nozzles (pcs) | Rainmaker (3), Rear Spray Bar (10) |
| Rainmaker | Extendable 3m mast with 3 high-pressure nozzles |
| Jetwash | 7m stowed hose with lance |
| Bowser | Road towable trailer with 1125l tank |
| Nozzleline | 2 x 50m flexible nozzleline, 2m spaced, 10m manifold fitted with quick release fitting for ease of use |
| Coupling | Available in 40mm eye or 50mm ball hitch |
| Spray Bar | Custom spray bar with 10 high pressure nozzles on rear chasis |
| Power supply | Yanmar L100 engine |
Bespoke applications are available including a variety of trailers for mobile options.
