Fixed Rotary Atomiser
£100.00
Fixed Rotary Atomisers are available for a variety of applications including; odour control, dust suppression, disinfection and cooling.
The Fixed Rotary Atomiser is available in wall mounted or ceiling mounted form and mains powered. Fixed units aren’t available to purchase online, please enquire for a personalised solution.
Description and technical specification
Rotary Atomisers are available as a mobile or fixed solution for a variety of applications including; odour control, dust suppression, disinfection and cooling.
The Rotary Atomiser is a powerful system, using rotary centrifugal energy to force liquid into a finely atomised mist, which is projected forward by a fan at the back of the unit. It can be set to produce a variety of different droplet sizes allowing it to be adjusted to suit each individual need, achieving the optimal droplet size to tackle the specific issue.

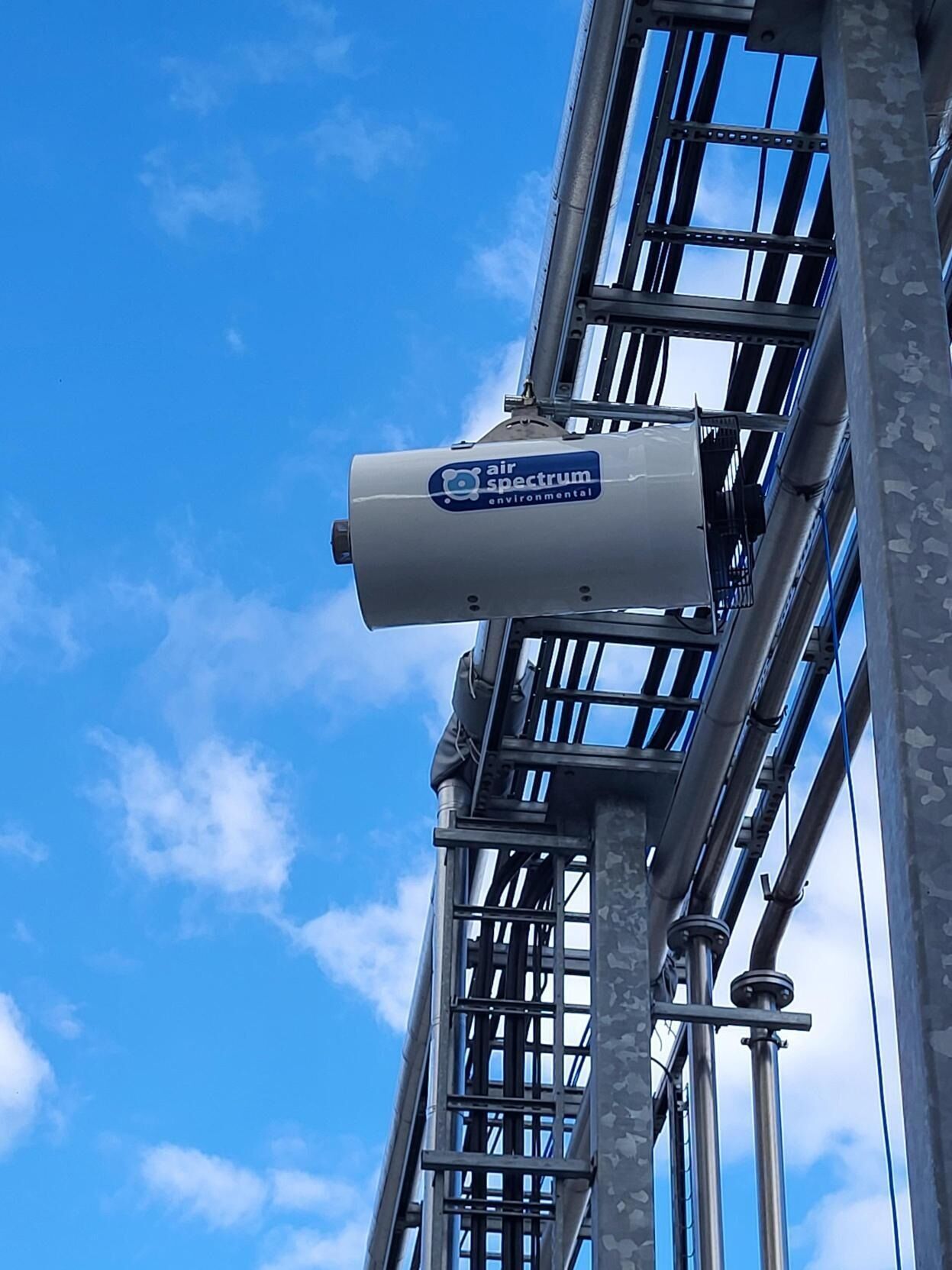

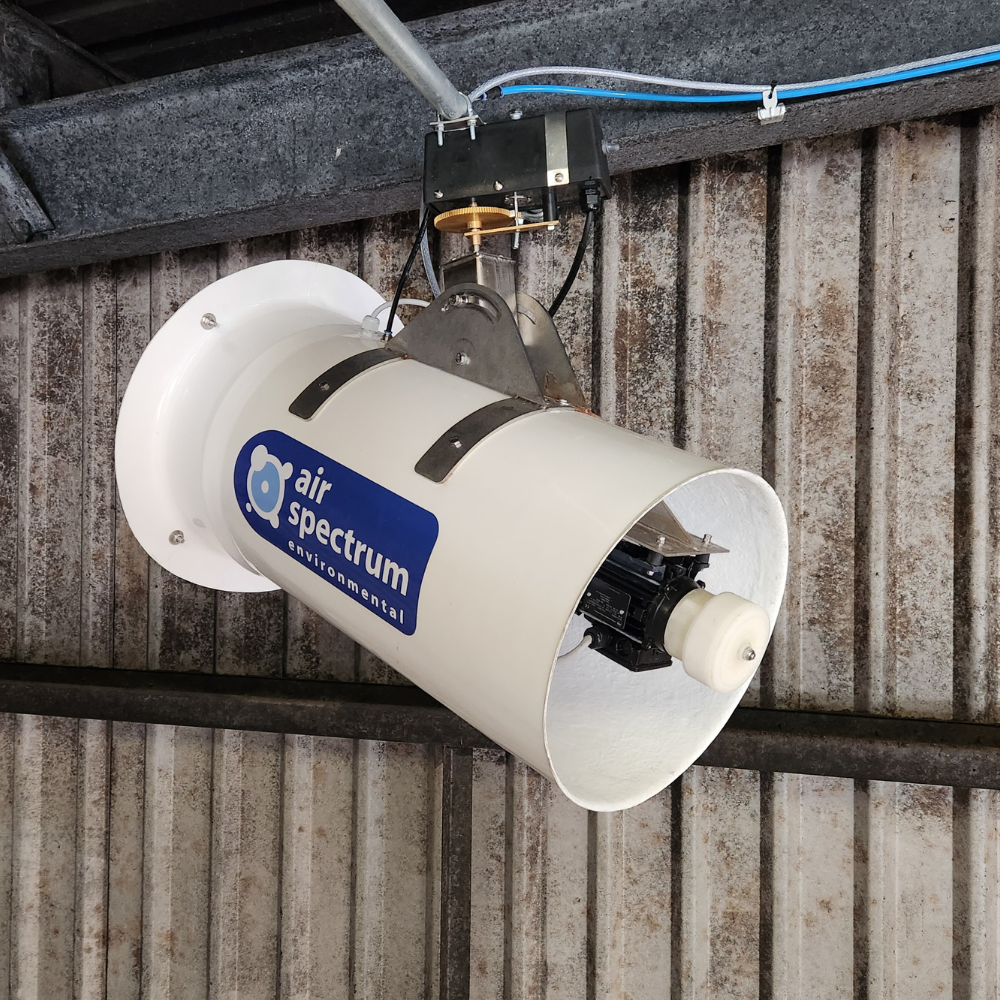

Fixed Rotary Atomiser’s are available as a wall mounted or ceiling mounted solution and are designed to provide excellent coverage in both indoor and outdoor environments. Fixed units are mains operated and are operated with a simple on/off switch.

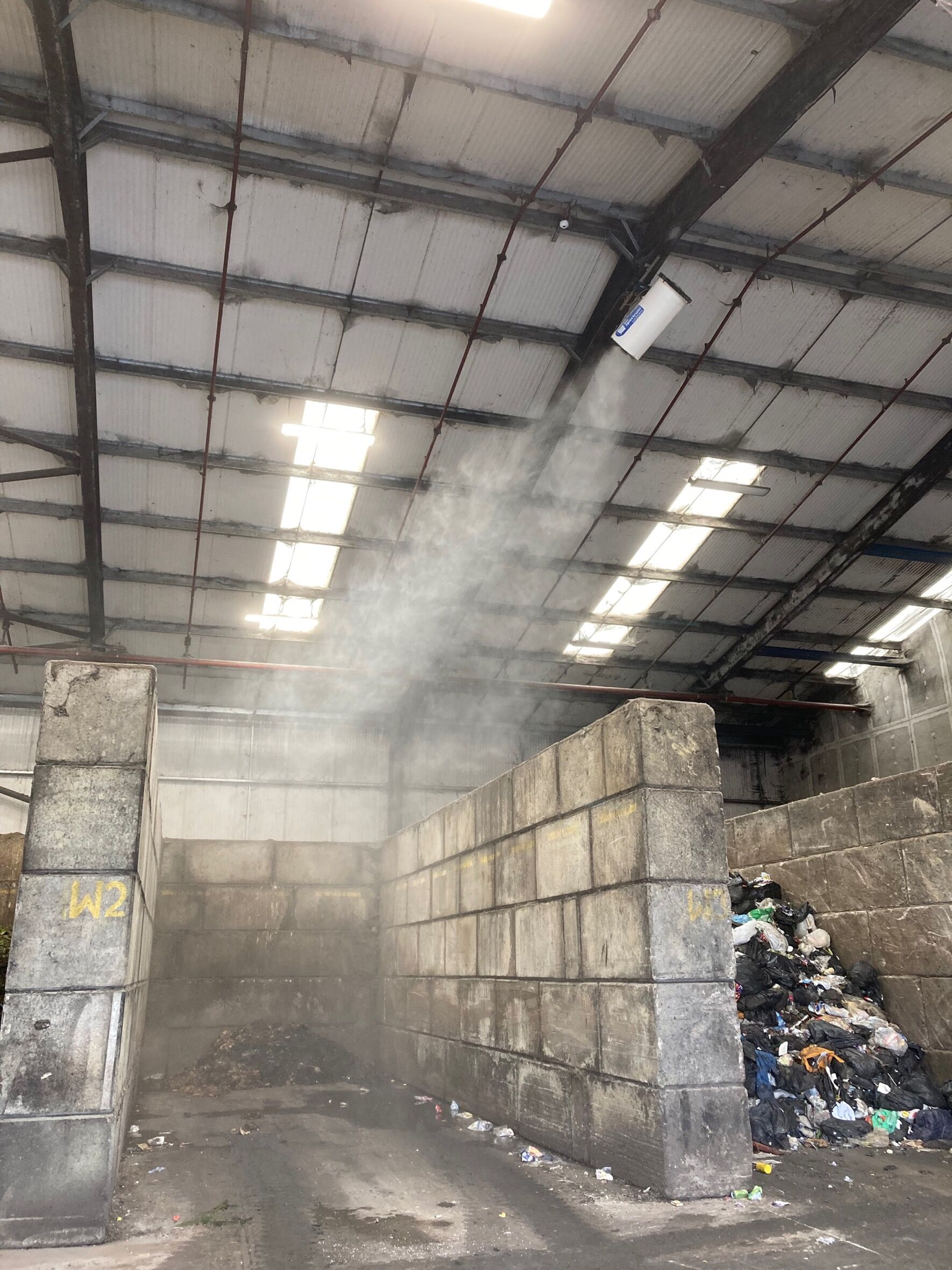

The fixed RA can deliver a throw of 15+ metres of finely atomised mist to provide close targeting of odour, dust, and other necessary applications. The system also includes a timer, pulse settings and the option for oscillation, providing a 360° rotation for maximum coverage.
As with the mobile RA range, the fixed system is also compatible with our chemical liquid additives which can be dosed through the system using the integrated dosing system.
- Highly energy efficient
- Low maintenance
- Flexible applications
- Covers large areas and projects long distances
technical specification
- Droplet Size (µm) – 40-70 Microns
- Sprayed Area – 2800 m3
- Fan – 410W
- Pump – 20W
- Water Source – Mains Powered
- Minimum Input Water Pressure – 2.5 bar
- Water Consumption – 0.5 – 3.0 l/min (high flow)
- Horizontal Turning Radius – 360° Rotation
- Power Supply – 110v or 230v (Order Specific)
Applications
- Demolition
- Ground Remediation
- Bulk Materials Handling
- Waste Transfer and Landfill
- Crushing and Screening
- Construction
- Mining and Quarrying
- Aggregates
- Disinfection Services
- Manufacturing
Chemical additives
Our range of chemical liquid additives can be used alongside the Fixed Rotary Atomiser where necessary by being dosed through the system using the integrated dosing system supplied.
Our full range of bio-degradable additives including, ODR liquid odour neutraliser, FlyGoPro non-toxic insecticide, ASE Disinfect and DST dust suppression additive are compatible with the Fixed Rotary Atomiser.
Available in a variety of strengths to tailor individual requirements, our chemical range has been designed to be as eco-friendly as possible.
ODR
Bio-degradable Liquid Odour Neutraliser
flygopro
Non-toxic Insecticide
DST
Dust Suppression Additive
ase disinfect
Multi-Purpose Disinfectant
Additional information
| System type | Mobile systems 110v, Mobile systems 240v |
|---|---|
| Power Source | Ecotech Battery, Generator, No power source needed (mains) |
