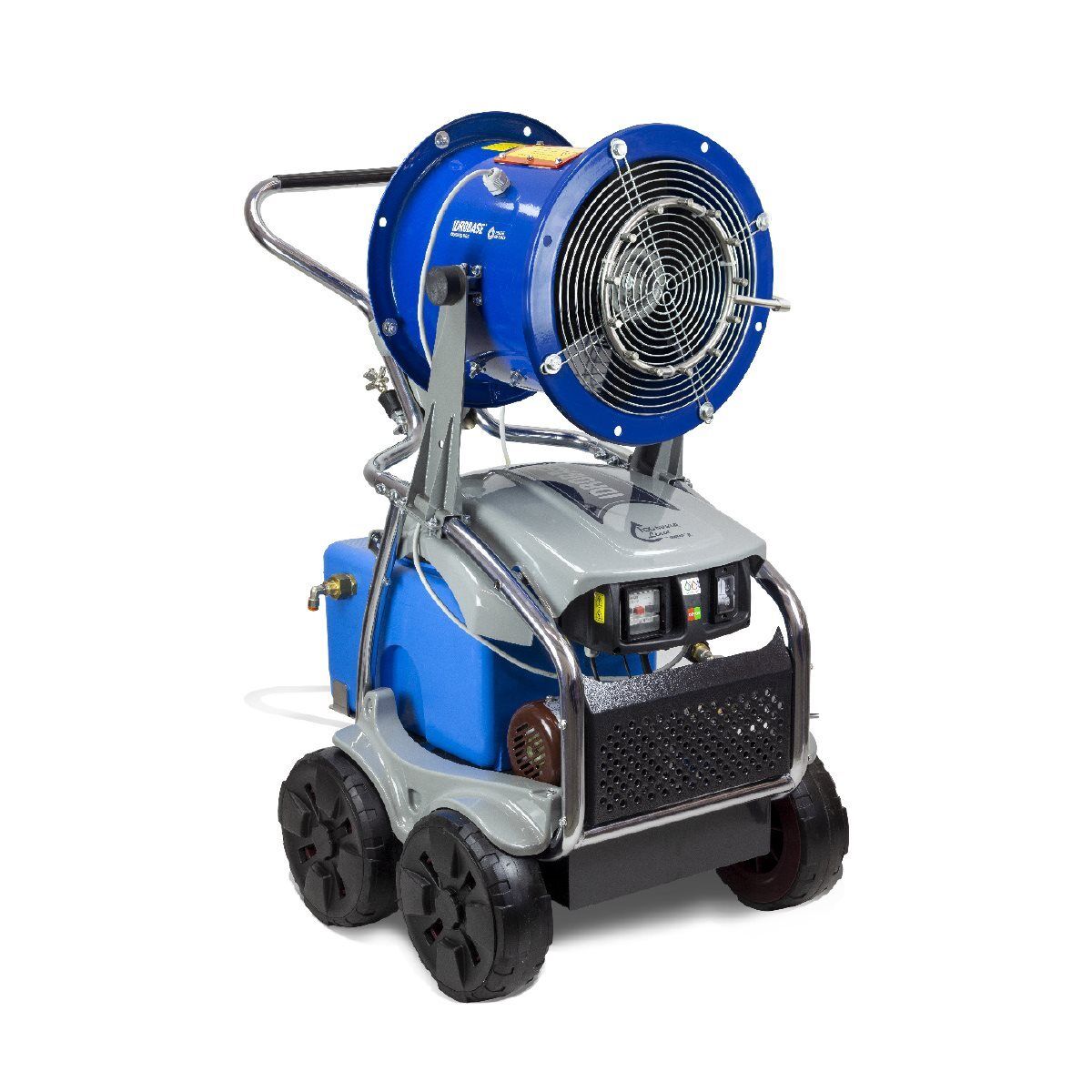

Compact and portable, perfect for smaller projects and suitable for use indoors and outdoors.
The Mini Mister range contains 2 units. Both are compact, portable misting systems. Small but powerful, the units offer 10m+ (PRO) / 6m+ (LITE) of coverage and are suitable for indoor and outdoor use. Connecting to mains power and water allows for continuous use, a 30l reserve tank is also included if a continuous water source is not available.
30 (PRO) / 13 (LITE) stainless steel nozzles form a powerful vortex that throws a consistent cloud of mist – suitable for localised dust suppression / disinfection / odour control or cooling.
When unit is being used for odour control (with odour neutraliser) a dosing pump will be supplied. Dosing levels of around 2-6% are advised when using additives, please contact a sales representative for further information on dosing rates and fragrances.
| General | |
| Throw (no wind) | PRO 10m LITE 6m |
| Throw (with wind) | 10m+ / 6m+ |
| Elevation | 0° – 30° Manual |
| Dimensions / Weight | |
| Length (m) | 650mm |
| Width (m) | 800mm |
| Height (m) | 1200mm |
| Weight (kg) | 70kg/60kg (empty water tank) |
| Power | |
| Mains | Yes |
| Water | 30l reserve tank / hose supply* |
| Nozzles | 1 ring AISI 304 stainless steel with 13 (LITE) / 30 (PRO) nozzles |
| Connection | Hose lock connector |
| Consumption (Litres per minute) | 4 l/p/m (PRO)
1 l/p/m (LITE) |
| Consumption
(Water bowser lifespan) |
30l tank – 7 minutes Mains – indefinite |
| Noise | < 80Lw |
