Description and technical specification
The Jetstream range consists of powerful, singular nozzles that are powered by high-capacity air flow. We offer both electrical and non-electrically powered systems for ATEX environments.
Jetstream systems are a fixed solution, installed at the source of the problem. Using powerful jets of fine mist, they can be used as a solution for a range of issues including; dust suppression, odour control, cooling and disinfection.
Air Spectrum Environmental have 2 models in the Jetstream range – the Jetstream Simple and Jetstream Smartech.
Bespoke systems are available, with a range of power sources and placements.
Jetstream systems can work in conjunction with our range of chemical additives, including Odr odour control additive, and ASE Disinfect, our all-in-one disinfectant.
JETSTREAM SIMPLE

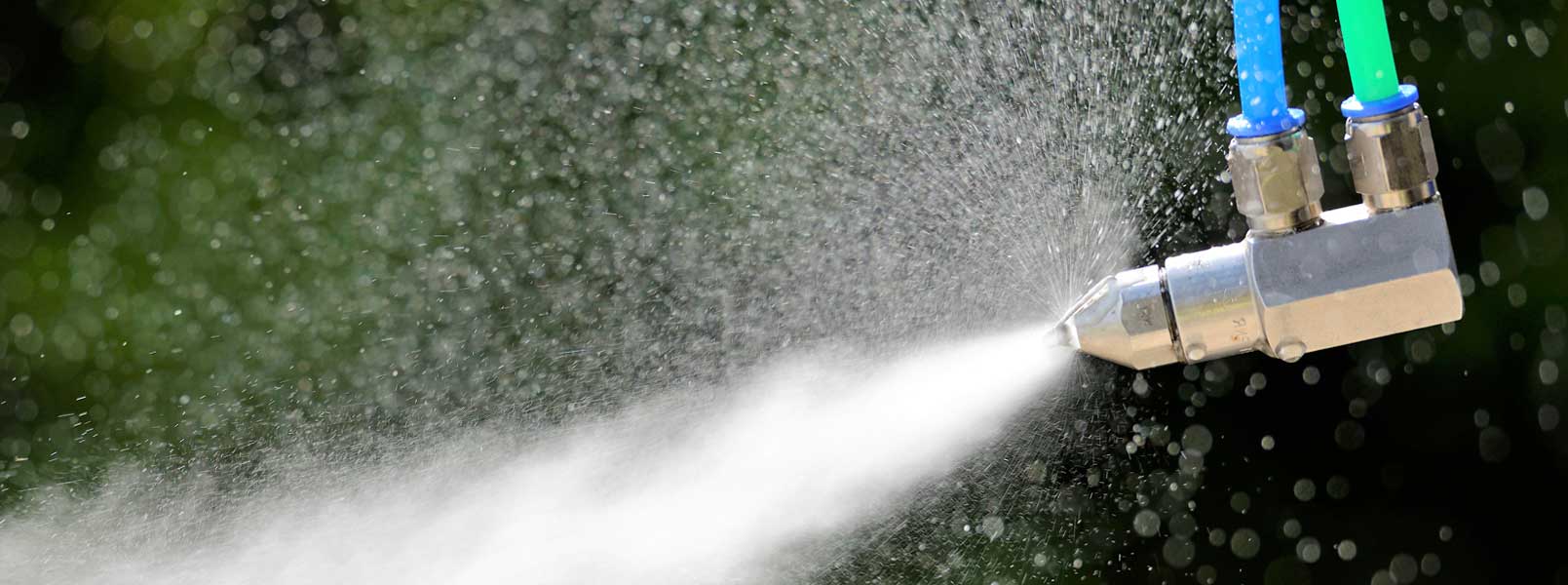

The Jetstream Simple is a simple but versatile system utilising only compressed air to feed several atomizing nozzles. As there is no electricity required to run the system, there is no risk of the Jetstream Simple producing a spark, which makes it ‘inherently safe’ and ideal for use where volatile or explosive materials are present, for example in Petro-chemical manufacturing processing plants or oil refineries. The Jetstream Simple can supply several nozzles proportional to the air supply. A variety of nozzle tips can be used depending on the application to produce an extra fine atomisation, ideal for suppressing dust/odour at point source or for suppressing odour/dust in chimney stacks and extraction systems. The system is fitted with a small 4l header tank that can be directly plumbed to the mains water system. The flexibility of the system allows the use of an optional water powered Dosing pump for odour control applications. The Atomising nozzles utilized in the system are machined from Stainless steel to provide durability and precision. Each nozzle can be adjusted to provide as little or as much suppression as required on the nozzle itself.
System requirements
Air supply – 10bar @ 6m3/hr -8mm od. (min requirement)
Water Supply – 4–6 bar potable mains supply 22mm mdpe
Droplet Size – 15-50micron user adjustable
Water Consumption – Per nozzle from 2lph up to 5.5lph
JETSTREAM SMARTECH
The Jetstream Smartech is an intelligently controlled, compressed air misting system. Ability to supply and control multiple nozzles in multiple zones using the latest in PCB technology. Applications include but not limited to effectively suppress odour/dust in extraction or ductwork systems, for use in misting scrubbers, point source dust & odour suppression on conveyer systems, bulk storage bays, input hoppers or in localised external applications. Featuring an advanced 7-day timer and optional remote options which can be triggered from an external remote source, such as a wind-switch, remote control, and SMS activation. The control panel uses our latest controller providing the user with a simple colour screen interface allowing simple selection of zones and timers. The Jetstream Smartech requires a compressed air, water, and mains electricity supply. The Atomising nozzles utilized in the system are machined from Stainless steel to provide durability and precision. Each nozzle can be adjusted to provide as little or as much suppression as required on the nozzle itself.
The system incorporates a small header tank and the ability to run nozzles in 4 independent zones. Optional electronic or water powered dosing pumps available for introduction of Spectrum ODR .
System requirements
Air supply – 10bar @ 6m3/hr -8mm od. (min requirement)
Water Supply – 4–6 bar potable mains supply 22mm mdpe
Power Supply – 230v 16amp
Droplet Size – 15-50micron user adjustable
Water Consumption – Per nozzle from 2lph up to 5.5lph
